Custom data cabinets

Custom data cabinets
Filtered by model:

rks remove filter

Data cabinets are suitable for use from the smallest apartments to large detached houses. The RKM and RKS data cabinets are made from hot galvanised steel plate that has been painted white. The RKP data cabinets are made of white plastic. The IT space can be equipped with a wide variety of fittings, which enables several different uses. All data cabinets are available for both surface and flush mounting.

Download Catalogue

SSTL number Name Product description In Installation
SSTL number
Name
Product description
In Installation

RKS580U-IT/0,12, Data-asennuskotelo FE

Asiakaskohtainen malli


Product Card Main diagram.pdf

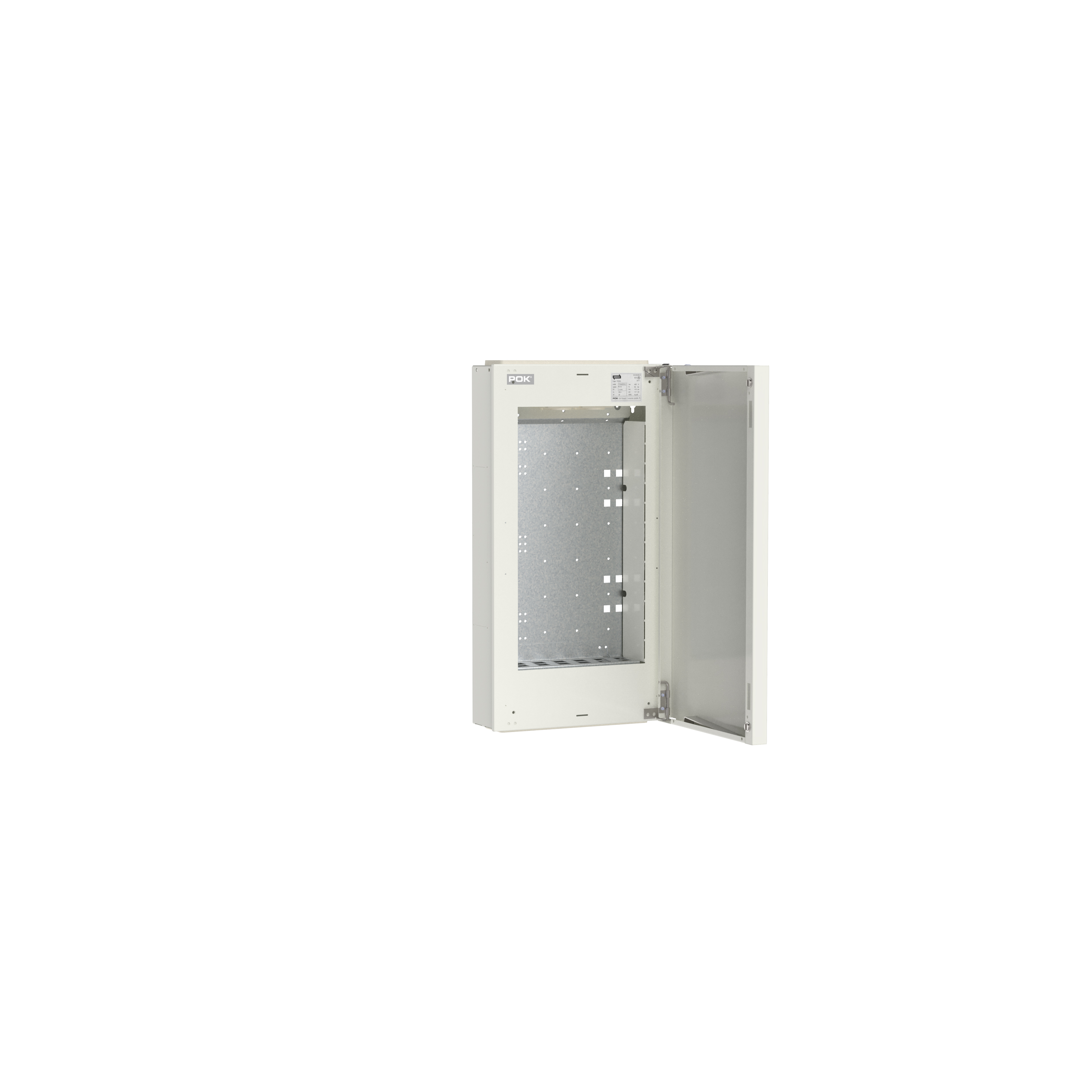

The RKS series distribution center is best suited for smaller apartments and units. The models are specifically designed for tight renovation sites. The centers are made from white painted, hot-dip galvanized steel sheet. Group centers for separate installation are also available in the same RKS series.
Available in both surface-mounted and flush-mounted models. In the surface-mounted model, the back of the enclosure is open for cable routing through the base.

Ue (V) 230/400
In (A) -
IP 20
fn
Icw <5 kA
Material Ku-Si
352 x 548
RJ -connector
Installation
Väri RAL9010
hyvaksynta_fi hyvaksynta_ce hyvaksynta_eac

RKS750U-IT/0,12, Data-asennuskotelo FE

Asiakaskohtainen malli


Product Card Main diagram.pdf

The RKS series distribution center is best suited for smaller apartments and accommodations. The models are specifically designed for tight renovation projects. The centers are made from white painted hot-dip galvanized steel sheet. Group centers for separate installation are also available in the same RKS series.

Available in both surface-mounted and flush-mounted versions. The surface-mounted model features an open back panel to allow for cabling through the bottom.

Ue (V) 230/400
In (A) -
IP 20
fn
Icw <5 kA
Material Ku-Si
237 x 714
RJ -connector
Installation
Väri RAL9010
hyvaksynta_fi hyvaksynta_ce hyvaksynta_eac

RKS750P-IT/0,12, Data-asennuskotelo FE

Asiakaskohtainen malli


Product Card Main diagram.pdf

The RKS series distribution center is best suited for smaller apartments and residential units. The models are specifically designed for tight renovation sites. The centers are made from white painted hot-dipped galvanized steel sheet. The same RKS series also offers group centers for separate installations. Available for both surface-mounted and flush-mounted installations. In the surface-mounted model, the back of the enclosure is open to allow for cabling through the bottom.

Ue (V) 230/400
In (A) -
IP 20
fn
Icw <5 kA
Material Ku-Si
RJ -connector
Installation Surface
Väri RAL9010
hyvaksynta_fi hyvaksynta_ce hyvaksynta_eac

RKS580P-IT/0,12, Data-asennuskotelo FE

Asiakaskohtainen malli


Product Card Main diagram.pdf

The RKS series distribution center is best suited for smaller apartments and residential units. These models are specifically designed for tight renovation projects. The centers are made from white painted hot-dip galvanized steel sheet. The same RKS series also offers group centers for separate installation.

Available in both surface-mounted and flush-mounted versions. In the surface-mounted model, the back of the enclosure is open to allow cabling through the bottom.

Ue (V) 230/400
In (A) -
IP 20
fn
Icw <5 kA
Material Ku-Si
RJ -connector
Installation Surface
Väri RAL9010
hyvaksynta_fi hyvaksynta_ce hyvaksynta_eac

RKS500P-IT /0,12, Data-asennuskotelo FE

Asiakaskohtainen malli


Product Card Main diagram.pdf

The RKS series distribution center is best suited for smaller apartments and residential units. The models are specifically designed for compact renovation projects. The centers are made of white-painted hot-dip galvanized steel sheet. The RKS series also includes group centers available for separate installation.

Available in both surface-mounted and flush-mounted models. The surface-mounted model has an open back panel to facilitate cabling through the bottom.

Ue (V) 230/400
In (A) -
IP 20
fn
Material Ku-Si
RJ -connector
Installation Surface
Väri RAL9016
hyvaksynta_fi hyvaksynta_ce hyvaksynta_eac
